99.6%/Ni200/Ni201 Pure Nickel Stranded Alloy Wire

Name: 996Ni200Ni201 Pure Nickel Stranded Alloy Wire
Brand: Victory
Price: 5 USD

99.6%/Ni200/Ni201 Pure Nickel Stranded Alloy Wire Manufactures

Brand Name : Victory

Model Number : N4,N6,Ni200,Ni201

Certification : ISO9001,ROHS

Place of Origin : China

MOQ : 1KG

Price : 5 - 99 kilograms US$45.00

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 tons per month

Delivery Time : 7-25 days

Packaging Details : Spool package with Carton box, Coil package with polybag,

Product name : Pure Nickel Wire

Grade : N4,N6,Ni200,Ni201

Material : Ni

Elongation (≥ %) : 35%

Ni(min) : 99%

Shape : Wire

size : 0.025-10mm

Ultimate Strength (≥ MPa) : 462

Resistance (μΩ.m) : 15

Melting Point : 1435-1446°C

Tensile Strength Ksi (min) : 462

Hardness : S,1/4H,1/2H,3/4H,H

Application : Industry,Electronic

M.O.Q : 1KG

Delivery : 7-25 days

Contact Now

Introduction:

1. Pure nickel wire exhibits excellent ductility and malleability, allowing it to be easily shaped and formed into intricate designs.

2. Its versatility enables applications in jewelry making, crafting, and precision instrumentation, where fine wirework or precise temperature sensing is required.

3. Pure nickel wire stands as a trusted material in various industries, offering corrosion resistance, electrical conductivity, and versatility.

4. Its exceptional properties make it an indispensable component in numerous applications, from electronics to artistic creations.

Specification:

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	≤0.015	≤0.03	≤0.002	≤0.01	≤0.01	≤0.001	≤0.001	≤0.04
N6	99.5	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	≥99.9	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	≥99.6	≤0.25	≤0.35	≤0.35	≤0.15	/	≤0.01	/	≤0.40

Physical Data
Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Applications:

1. Electronics: Pure nickel wire is used in electronics for applications such as electrical connections, circuitry, and soldering. Its high electrical conductivity and corrosion resistance make it suitable for use in components like resistors, connectors, and printed circuit boards.

2. Heating Elements: Pure nickel wire is often utilized as a heating element in applications such as electric furnaces, heating coils, and industrial heaters. Its high temperature stability and electrical resistance properties make it an ideal choice for generating controlled and efficient heat.

3. Aerospace and Aviation: Pure nickel wire finds applications in the aerospace and aviation industries due to its high temperature stability, corrosion resistance, and reliability. It is used in components like temperature sensors, strain gauges, and control systems for aircraft and spacecraft.

4. Chemical Processing: The corrosion resistance of pure nickel wire makes it suitable for use in chemical processing equipment and environments. It is used in applications such as chemical reactors, electroplating, and catalysts where resistance to corrosive substances is crucial.

99.6%/Ni200/Ni201 Pure Nickel Stranded Alloy Wire

Shape	Size(mm)
Wire	0.025-10
Ribbon	(0.05-0.2)*(0.5-6)
Strip	(0.05-0.5)*(5-200)

Product Tags:

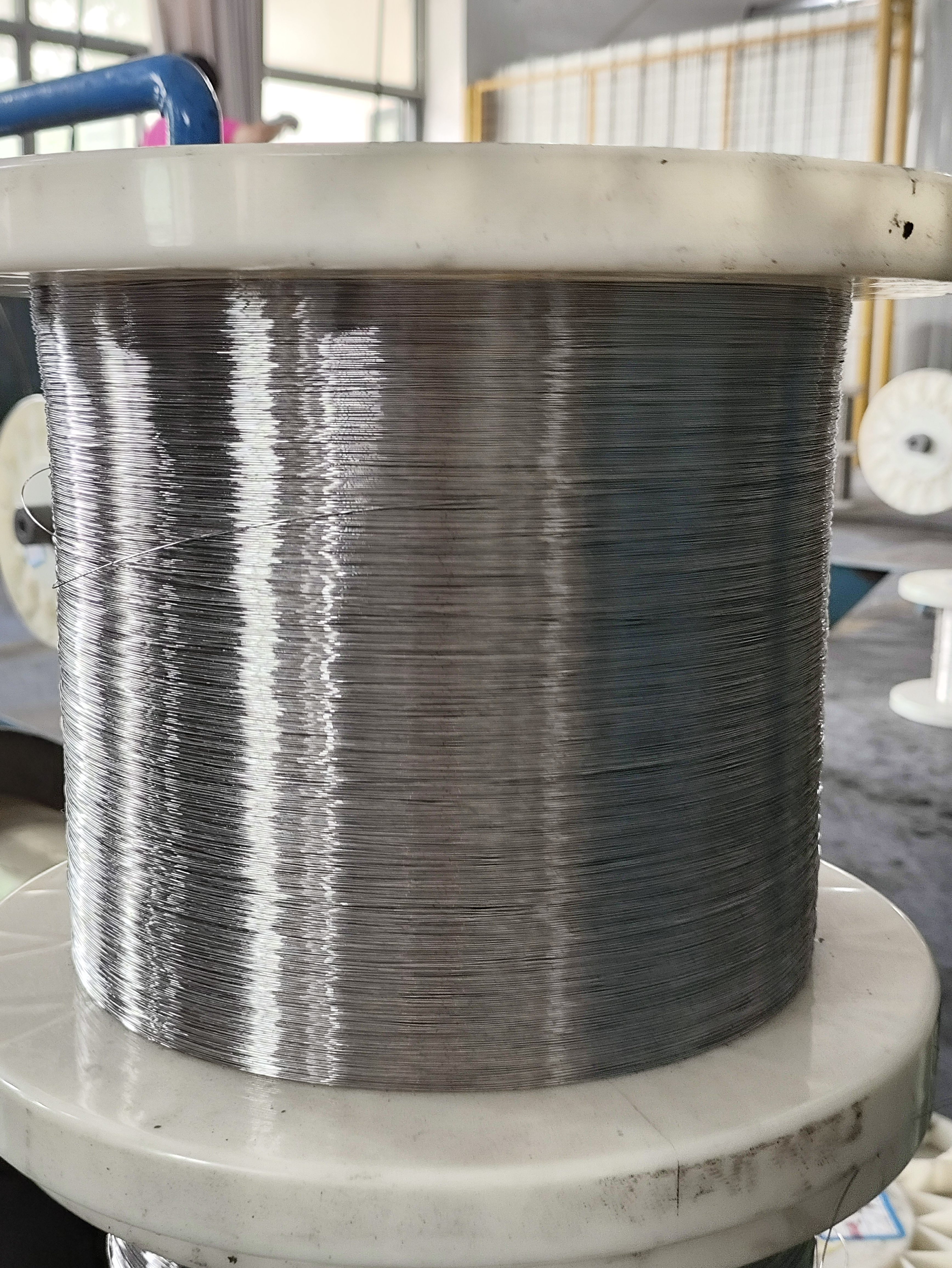

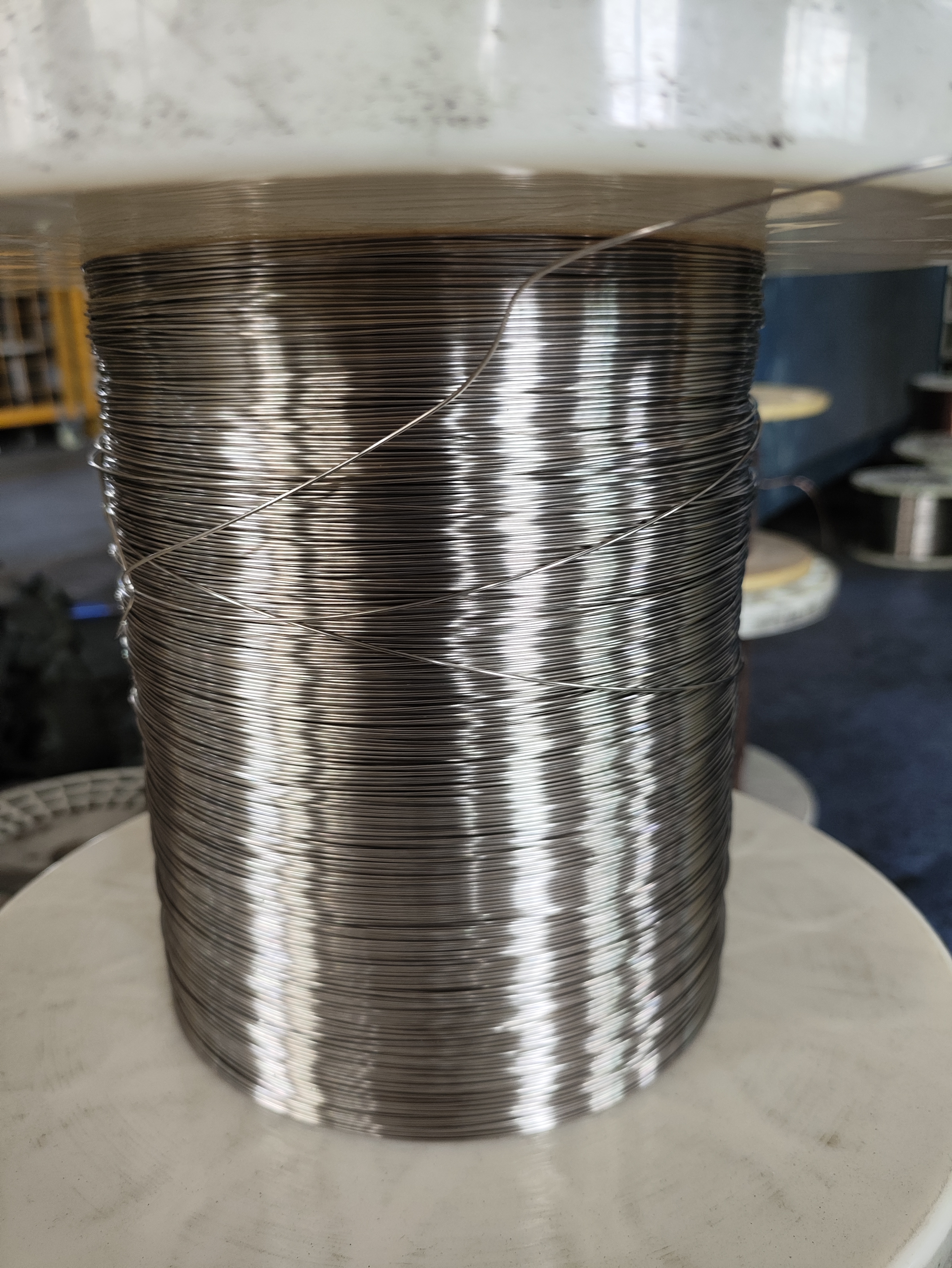

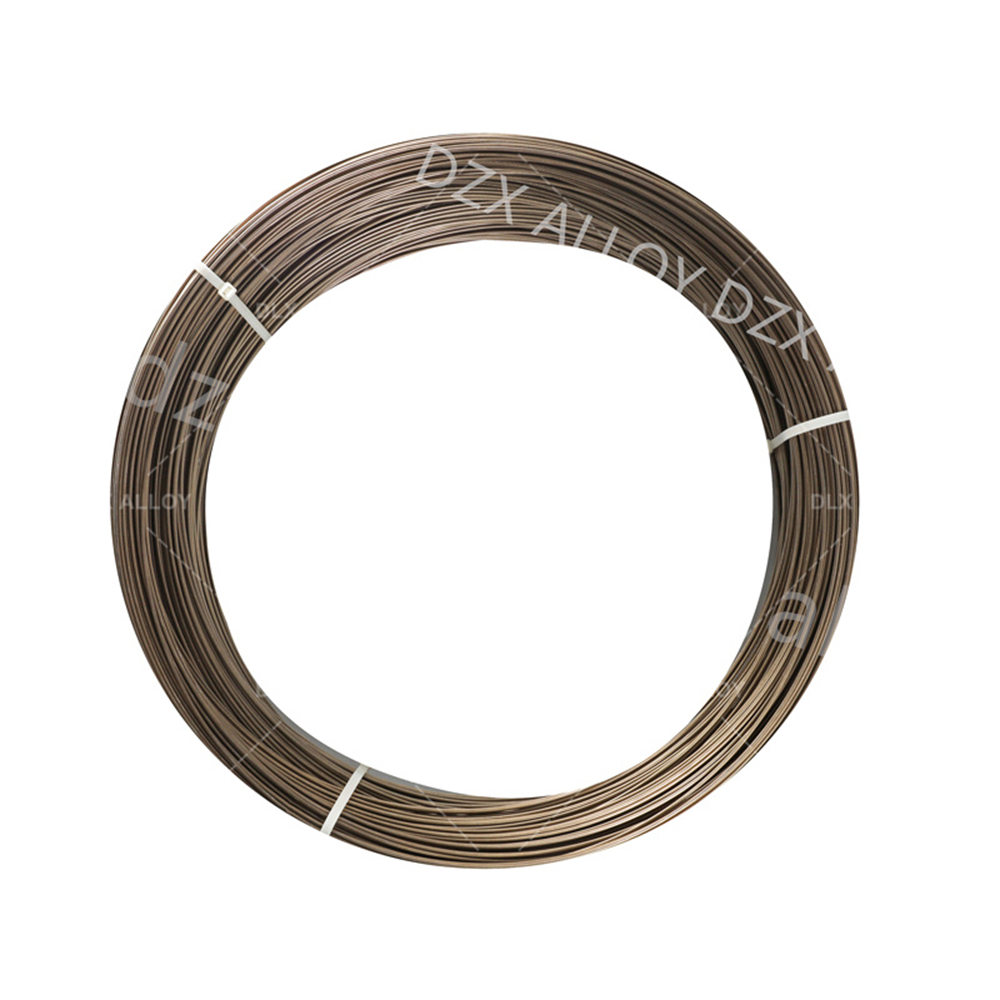

99.6%/Ni200/Ni201 Pure Nickel Stranded Alloy Wire Images
